BBMDP: A Markov Decision Process for Variable Selection in Branch & Bound

Authors: Paul Strang, Zacharie Alès, Côme Bissuel, Olivier Juan, Safia Kedad-Sidhoum, Emmanuel Rachelson

Published: NeurIPS 2025 · arXiv:2510.19348 — October 22, 2025

Affiliations: EDF R&D · ENSTA Paris (Institut Polytechnique de Paris) · CNAM Paris (CEDRIC) · ISAE-SUPAERO

My role

Industrial co-supervisor (CIFRE EDF) and problem setter. I defined the EDF application context and research direction, and provided support to the implementation.

Context & Motivation

Reinforcement Learning is a natural fit for Branch and Bound (B&B): branching decisions are sequential, the objective is global, and the agent can improve over time by solving repeated instances of the same problem family. Yet, despite a decade of effort, RL branching agents have consistently fallen short of Imitation Learning (IL) approaches, which simply learn to mimic the expensive Strong Branching (SB) expert.

A key reason is theoretical: prior RL approaches relied on TreeMDP, an MDP-_inspired_ but not MDP-_compliant_ formulation. TreeMDP defines a branching action as producing two next states (the two child nodes), which violates the fundamental Markov property of standard MDPs. This forces ad hoc Bellman updates and ad hoc convergence proofs, and — more critically — breaks compatibility with multi-step RL algorithms that are central to state-of-the-art deep RL.

This paper asks: can we define a proper MDP for B&B branching, and does it help in practice?

The Problem with TreeMDP

In TreeMDP, the state is the current B&B node \(s_i = (P_i, x^*_{LP,i}, \bar{x}_i)\) and a branching action yields two child states \((s^-_i, s^+_i)\). This is not a stochastic process on a state variable — it is a tree process — and therefore not a Markov Decision Process. The consequences are concrete:

• k-step TD learning is broken: applying the tree Bellman operator k times yields a target that sums \(2^k\) pseudo-states, a trajectory that cannot be produced by any actual DFS execution of B&B. The resulting targets are biased approximations of true B&B dynamics.
• MCTS is incompatible: TreeMDP’s UCT criterion balances exploration between \(s^-_i\) and \(s^+_i\), but since branching on \(a_i\) necessarily adds both children to the tree, this comparison is meaningless.
• Ad hoc theory: every RL algorithm (TD(0), value iteration, policy gradient) requires a custom convergence proof within TreeMDP, limiting reuse of the broader RL literature.

BBMDP: A Principled Formulation

BBMDP defines variable selection as a standard deterministic MDP \((S, A, \mathcal{T}, p_0, R)\):

The key insight is that the state must include the entire B&B tree, not just the current node. This is the minimal information needed for the Markov property to hold: the future trajectory depends on all open nodes and the current incumbent solution, not just the node being branched on right now.

Why DFS is still needed

Even with a proper MDP, the value of a subtree rooted at open node \(o_i\) depends on which other subtrees are explored before it (they may improve the incumbent \(\bar{x}\), enabling earlier pruning). The only node selection policy \(\rho\) that isolates subtrees from each other — making subtree size predictable from local information — is Depth-First Search. This recovers the computational tractability of TreeMDP without sacrificing MDP correctness.

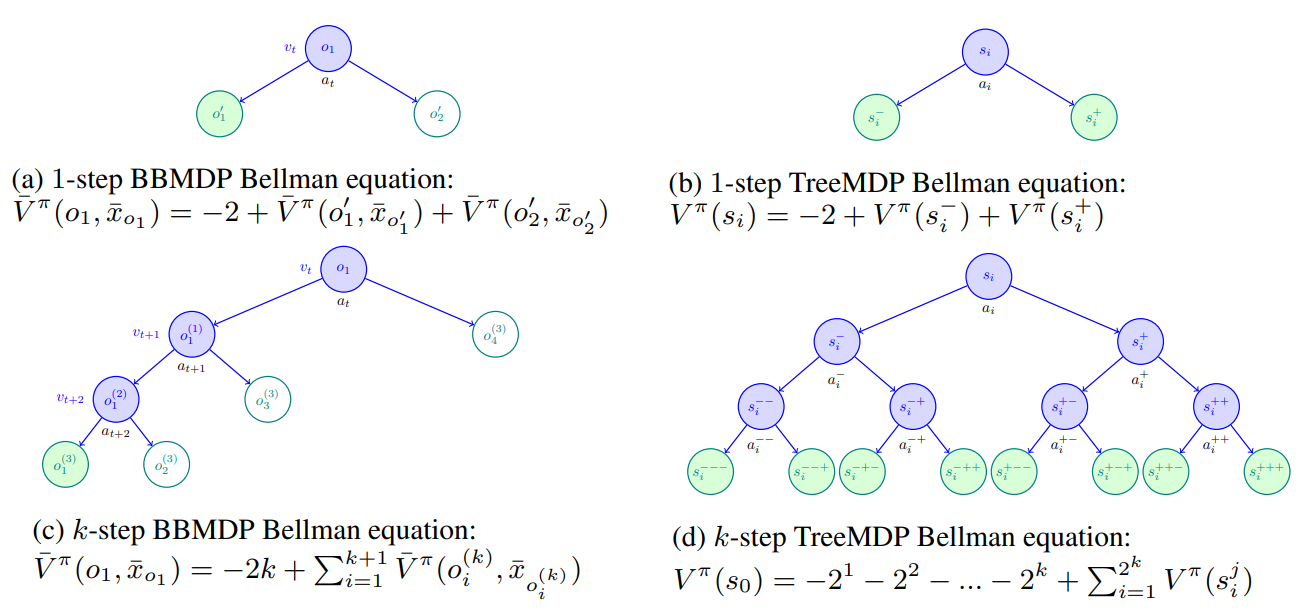

Under DFS-BBMDP, Proposition 3.1 establishes the refined Bellman equation:

where \(o'_1\) and \(o'_2\) are the two children of the branched node. This is structurally identical to the 1-step TreeMDP equation — explaining why TD(0) TreeMDP and BBMDP are equivalent — but it lives inside a proper MDP, unlocking multi-step extensions:

This k-step target follows a real DFS trajectory of length \(k\), visiting \(k+1\) open nodes — not a fictitious tree of \(2^k\) branches.

DQN-BBMDP Agent

State Representation

Following Gasse et al. [2019], B&B nodes are represented as bipartite constraint–variable graphs \(G = (V_G, C_G, E_G)\), processed by a Graph Convolutional Network (GCN). DQN-BBMDP enriches this with the additional node features introduced by Parsonson et al. [2022].

HL-Gauss Classification Loss

Drawing on Farebrother et al. [2024], BBMDP replaces the standard MSE regression loss with a HL-Gauss cross-entropy loss that encodes Q-values as categorical histogram distributions. This is non-trivial in the B&B setting: value functions span several orders of magnitude (\(Z_v = [-10^6, -2]\)). The solution is to partition the log-scale support \(\psi(Z_v)\) with \(\psi(z) = \log_2(-z)\), placing bin centres at \(\zeta_i = i\) and converting back via \(\psi^{-1}(z) = -2^z\).

Training Pipeline (Rainbow-DQN)

The full agent combines:

• k-step return (\(k=3\)) temporal difference
• Double DQN for stable target estimation
• Prioritized Experience Replay (PER)
• Boltzmann + ε-greedy exploration

for t = 0, …, N-1:
  1. Draw instance P ~ p₀.
  2. Solve P with ε-greedy / Boltzmann policy qθ_t.
  3. Collect k-step transitions (sᵢ, aᵢ, Σrᵢ₊ⱼ, sᵢ₊ₖ) → replay buffer.
  4. Update θ via HL-Gauss loss on batches from the replay buffer.

Experiments

Benchmarks & Setup

Evaluated on four standard MILP benchmarks from the Ecole library, using SCIP 8.0.3 as backend (DFS, no cuts beyond root, no restarts). Models are trained on fixed-dimension instances and evaluated on both same-size test instances and larger transfer instances.

Results

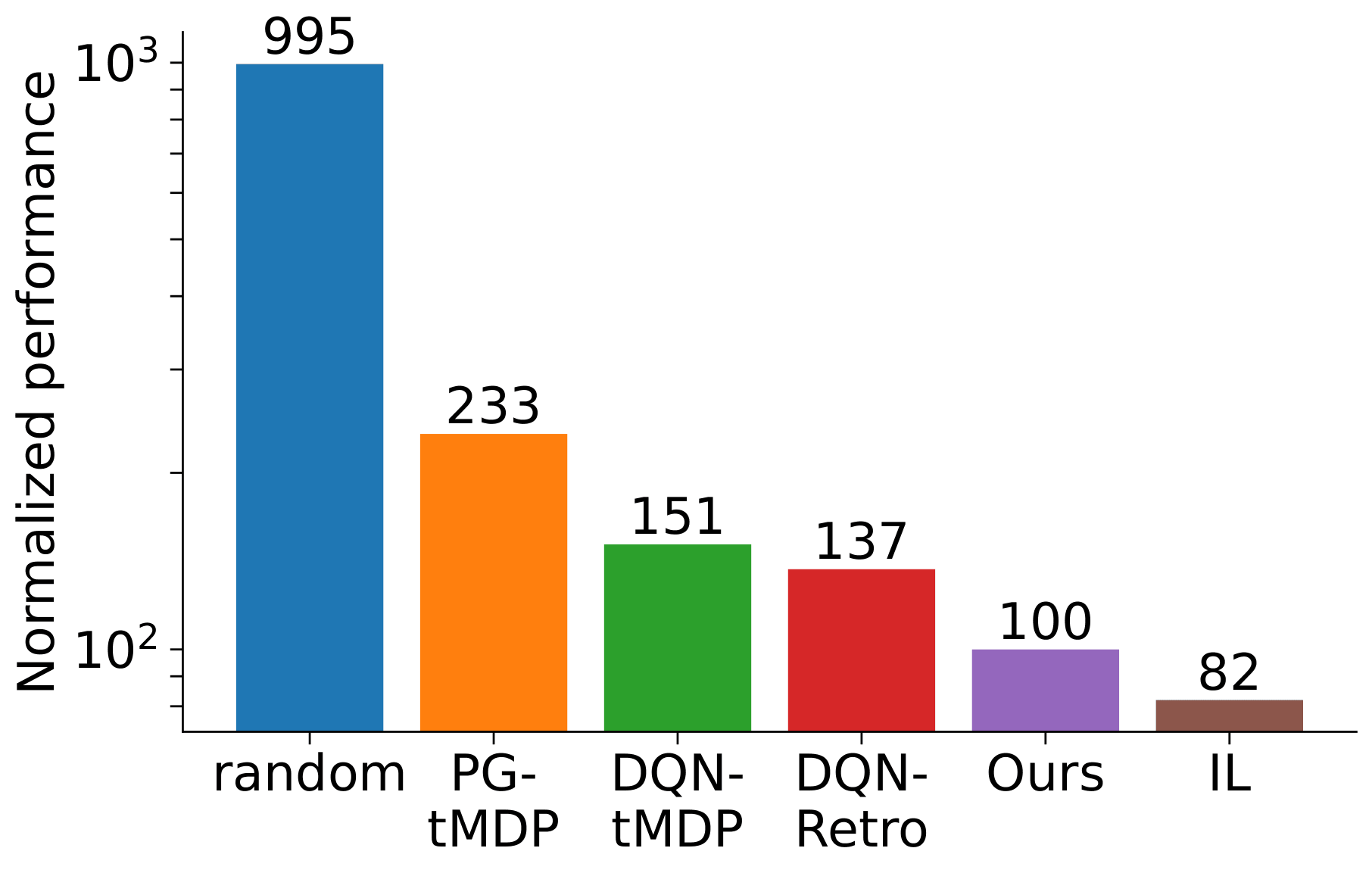

On test instances, DQN-BBMDP achieves best aggregate performance among all RL agents: −27% nodes and −38% solving time vs. the previous RL state-of-the-art (DQN-Retro).

On transfer instances (harder, out-of-distribution size), the advantage is even larger — BBMDP is the first RL agent to robustly generalise to higher-dimensional instances, outperforming SCIP on 3 out of 4 benchmarks. This aligns with the theoretical advantage of a principled MDP formulation over TreeMDP.

Full results (geometrical means over 100 test instances, 5 seeds):

Note: normalized scores are relative to DQN-BBMDP (lower is better). IL remains the reference on in-distribution test instances, but BBMDP closes the gap significantly and surpasses IL on transfer for several benchmarks.

Ablation Study

Key findings:

• HL-Gauss contributes the largest single gain (+10% without it).
• k-step returns improve BBMDP but hurt TreeMDP (+13% at k=3), directly confirming the theoretical claim that TreeMDP k-step targets are inconsistent with real B&B dynamics.
• DFS is not restrictive in practice, contrary to prior claims.

Theoretical Contributions

Proposition 3.1 — Under DFS-BBMDP, the global optimal branching policy \(\pi^*\) satisfies:

i.e., optimising locally over the current subtree is equivalent to global optimality. This result extends the subtree consistency property of Etheve et al. [2020] to the rigorous MDP setting, while also enabling k-step returns, TD(λ), and MCTS-based policy improvement — none of which were compatible with TreeMDP.

Limitations & Future Directions

• RL still lags IL on pure node count on some benchmarks; the generalization gap is closing but not yet closed.
• DFS requirement: while shown not to be restrictive in practice here, future work could explore removing this constraint.
• Convergence not reached on multiple knapsack after 200k steps, suggesting further gains with longer training.

Promising extensions opened by the principled BBMDP formulation:

• MCTS-based policy improvement (e.g., AlphaZero-style) — now theoretically compatible.
• TD(λ) and full Rainbow — directly applicable without custom convergence proofs.
• Cut selection and primal search — BBMDP generalises to other B&B heuristics by adapting the action set and reward.
• Distribution shift / domain adaptation — the MDP foundation provides a cleaner basis for addressing out-of-distribution generalisation.

Resources

arXiv: arXiv:2510.19348

Code & pretrained models:

Citation

@inproceedings{strang2025bbmdp,
  title     = {A Markov Decision Process for Variable Selection in Branch \& Bound},
  author    = {Strang, Paul and Al\`es, Zacharie and Bissuel, C\^ome and
               Juan, Olivier and Kedad-Sidhoum, Safia and Rachelson, Emmanuel},
  booktitle = {Advances in Neural Information Processing Systems (NeurIPS)},
  year      = {2025}
}
